Connector Terminal Inspection Report Template | Electrical Connection Quality Checklist | Editable Canva Word PDF | QC Download

Connector & Terminal Inspection Report helps electronics manufacturers, automotive suppliers, wire harness producers, quality assurance teams, and inspectors systematically evaluate connectors and terminals for dimensional accuracy, material quality, electrical performance, workmanship, and compliance with engineering specifications. This ready-to-use, professionally designed, and fully customizable inspection report template is created to simplify inspection processes, reduce defects, improve connection reliability, and ensure consistent component quality across production operations.

What's Included:

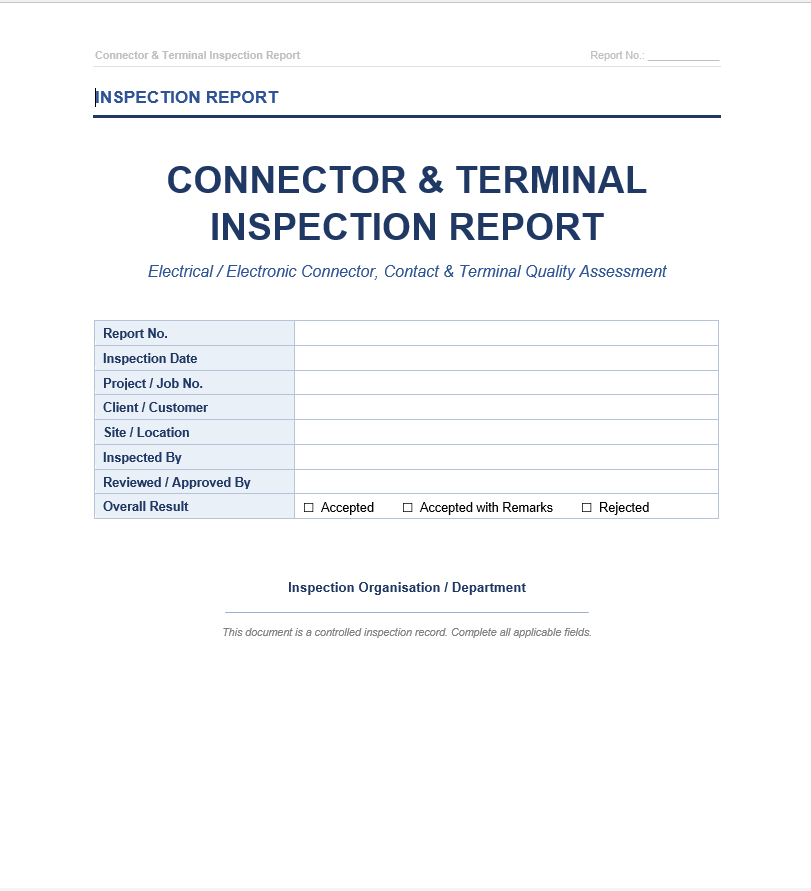

• Ready-to-use Connector & Terminal Inspection Report Template

• Product & Batch Identification Section

• Visual Inspection & Workmanship Checklist

• Dimensional Measurement Verification Records

• Material & Surface Finish Assessment

• Terminal Crimp & Contact Quality Inspection

• Electrical Continuity & Performance Testing Records

• Labeling & Specification Compliance Verification

• Non-Conformance & Defect Reporting Section

• Inspector Remarks & Corrective Action Tracking

Key Benefits:

• Standardizes connector and terminal inspection procedures

• Verifies compliance with engineering and customer specifications

• Reduces component defects and assembly failures

• Improves electrical performance and connection reliability

• Supports automotive, electronics, and industrial quality standards

• Enhances supplier quality management and traceability

• Tracks inspection findings and corrective actions efficiently

• Maintains complete records for audits and quality assurance reviews

Get your Connector & Terminal Inspection Report today and streamline your audit process.
